SKFFBSA 206/ QFC參數

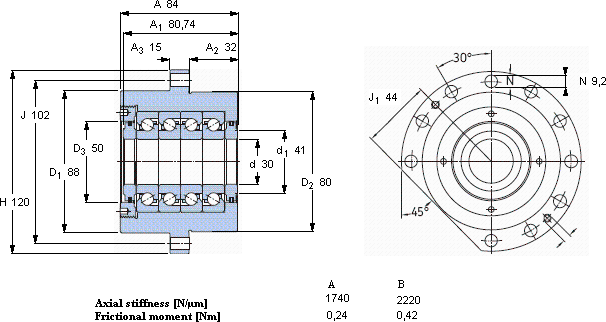

| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 80 | 84 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,5 | FBSA 206/ QFC | BSQU 230 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 206/ QFC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：80，厚度84，SKFFBSA 206/ QFC主要應用于輸送等機械上、等領域。如果您需要購買或者了解更多關于SKFFBSA 206/ QFC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 206/ QFC近似型號
- SKF FBSA 206/ QFC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF NU 206 ECML * 尺寸：30mm × 62 × 16 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF 6206 * 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：?jiǎn)瘟?/dd>
- SKF 3206 A-2RS1/MT33 * 尺寸：30mm × 62 × 23.8 類型：角接觸球軸承 備注：雙列
- SKF RNU 206 ECP * 尺寸：37.5mm × 62 × 16 類型：圓柱滾子軸承 備注：?jiǎn)瘟? 無內圈
- SKF YEL 206-103-2FCW 尺寸：30.163mm × 62 × 18 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF FBSA 206 A/ QBC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF 6206-2Z/VA228 尺寸：30mm × 62 × 16 類型：工程產品 備注：深溝球軸承, 單列, 用于高溫
- SKF 52206 尺寸：25mm × 52 × 29 類型：推力球軸承 備注：雙向
- SKF 7206 BECBY 尺寸：30mm × 62 × 16 類型：角接觸球軸承 備注：?jiǎn)瘟?/dd>
- SKF 6206 * 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：?jiǎn)瘟?/dd>
- SKFFBSA 206/ QFC相關型號
- SKFFBSA 210/ QBC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DF 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC推薦型號
- NTN 6303 尺寸：17mm × 47 × 14 類型：
- STEYR 6416 尺寸：80mm × 200 × 48 類型：
- RHP 6316-2RS 尺寸：80mm × 170 × 39 類型：
- NTN 7334AC 尺寸：170mm × 360 × 72 類型：
- KOYO 7020C/DF 尺寸：100mm × 150 × 48 類型：
- TORRINGTON 23134CCK/33+H3134 尺寸：150mm × 280 × 88 類型：
- NTN NNU4960K 尺寸：300mm × 420 × 118 類型：
- MRC NU1018 尺寸：90mm × 140 × 24 類型：
- RIV NU320 尺寸：100mm × 215 × 47 類型：
- SKF NNC4868CV 尺寸：340mm × 420 × 80 類型：
