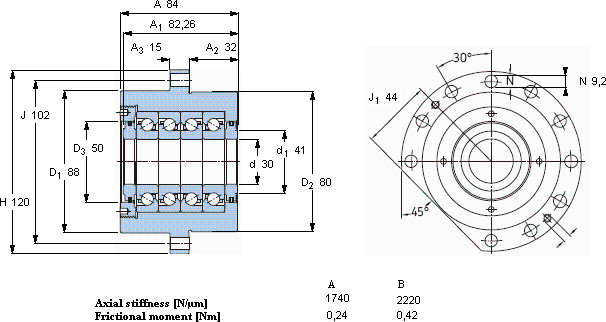

SKFFBSA 206/ QBC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 80 | 84 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,5 | FBSA 206/ QBC | BSQU 230 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 206/ QBC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：80，厚度84，SKFFBSA 206/ QBC主要應用于軋鋼機輥頸及減速裝置、等領域。如果您需要購買或者了解更多關于SKFFBSA 206/ QBC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 206/ QBC近似型號
- SKF YAR 206-103-2RF/HV 尺寸：30.163mm × 62 × 38.1 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF NU 2060 ECMA 尺寸：300mm × 460 × 95 類型：圓柱滾子軸承 備注：單列
- SKF NU 206 ECKP * 尺寸：30mm × 62 × 16 類型：圓柱滾子軸承 備注：單列
- SKF HA 206 尺寸：23.813mm × 30 × 27 類型：軸承附件 備注：用于英制軸的緊定套
- SKF 332068 尺寸：305.033mm × 560 × 200 類型：圓錐滾子軸承 備注：雙列，TDI結構
- SKF H 206 尺寸：25mm × 30 × 27 類型：軸承附件 備注：緊定套
- SKF FBSA 206 A/ QBC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF 5206 E-2Z 尺寸：30mm × 62 × 23.8 類型：角接觸球軸承 備注：雙列
- SKF 6206-2ZNR * 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：單列，帶止動環槽
- SKF YAR 206-103-2F/AH 尺寸：30.163mm × 62 × 38.1 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKFFBSA 206/ QBC相關型號
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC推薦型號
- MRC 7206C 尺寸：30mm × 62 × 16 類型：
- SNR 7216B 尺寸：80mm × 140 × 26 類型：
- DKF 7326AC/DF 尺寸：130mm × 280 × 116 類型：
- SKF 7010AC/DT 尺寸：50mm × 80 × 32 類型：
- NTN 24028CC/W33 尺寸：140mm × 210 × 69 類型：
- NTN 32019 尺寸：95mm × 145 × 32 類型：
- NTN NJ319 尺寸：95mm × 200 × 45 類型：
- NTN NF310 尺寸：50mm × 110 × 27 類型：
- FYH UCFLU321 尺寸：105mm × 112 × 270 類型：
- SKF 609-2RSL 尺寸：9mm × 24 × 7 類型：
