SKFBEAM 017062-2Z/PE參數

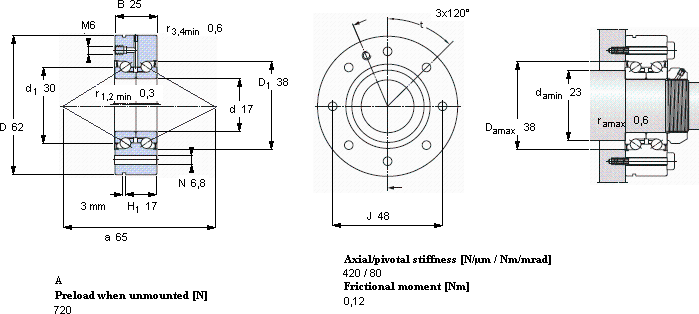

| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
| mm | kN | kN | r/min | kg | - | |||||
 | ||||||||||
| 17 | 62 | 25 | 19 | 31 | 1,16 | 6300 | 0,45 | BEAM 017062-2Z/PE | BEAM 17/62/Z SQP60 | |
SKFAngular contact thrust ball bearings for screw drivesBEAM 017062-2Z/PE屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, double direction, for bolt mounting的Angular contact thrust ball bearings for screw drives，內徑：17，外徑：62，厚度25，SKFBEAM 017062-2Z/PE主要應用于這種類型的軸承一般由生產廠商選配組合成對提交用戶，安裝后有預壓過盈，套圈和鋼球處于軸向預加載荷 狀態，因而提高了整組軸承作為單個支承剛度和旋轉精度、等領域。如果您需要購買或者了解更多關于SKFBEAM 017062-2Z/PE的信息， 歡迎撥打訂購熱線：022-27921004
