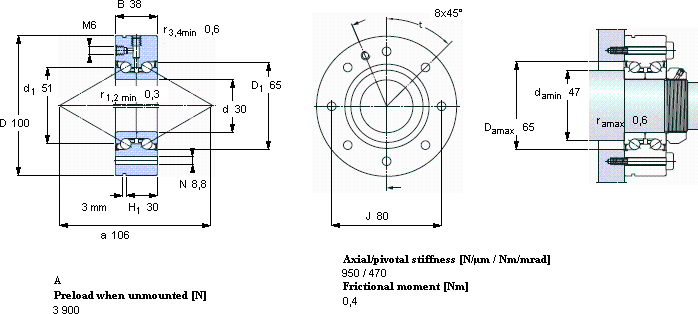

SKFBEAM 030100-2Z參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
| mm | kN | kN | r/min | kg | - | |||||
 | ||||||||||
| 30 | 100 | 38 | 60 | 108 | 4 | 4300 | 1,65 | BEAM 030100-2Z | BEAM 30/100/Z 7P60 | |
SKFAngular contact thrust ball bearings for screw drivesBEAM 030100-2Z屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, double direction, for bolt mounting的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：100，厚度38，SKFBEAM 030100-2Z主要應用于減速機、等領域。如果您需要購買或者了解更多關于SKFBEAM 030100-2Z的信息， 歡迎撥打訂購熱線：022-27921004
- SKFBEAM 030100-2Z近似型號
- SKF BEAM 030100-2RS 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 030100-2Z 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030100-2Z相關型號
- SKFBEAM 012055-2Z 尺寸：12mm × 55 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 040115-2RS 尺寸：40mm × 115 × 46 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2Z 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 012055-2RS 尺寸：12mm × 55 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 050115-2RS 尺寸：50mm × 115 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 050140-2Z 尺寸：50mm × 140 × 54 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 040100-2Z 尺寸：40mm × 100 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2Z 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2Z/PE 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030100-2Z推薦型號
- SNR 7222B 尺寸：110mm × 200 × 38 類型：
- BARDEN 7036C/DB 尺寸：180mm × 280 × 92 類型：
- BARDEN 7001AC/DT 尺寸：12mm × 28 × 16 類型：
- KOYO 33118 尺寸：90mm × 150 × 35 類型：
- NTN NU220 尺寸：100mm × 180 × 34 類型：
- MRC NU309 尺寸：45mm × 100 × 25 類型：
- NTN UCP206 尺寸：30mm × 38.1 × 167 類型：
- FYH UKFU207+H2307 尺寸：30mm × 43 × 119 類型：
- SKF NJ2306ECP 尺寸：30mm × 72 × 27 類型：
- SKF 32944/DFC300 尺寸：220mm × 300 × 102 類型：
