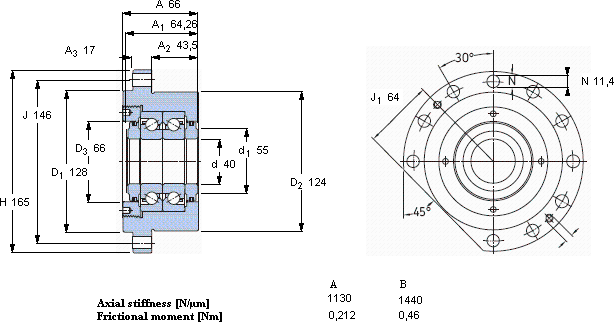

SKFFBSA 208/ DB參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 40 | 124 | 66 | 42,5 | 112 | 4,15 | 5040 | 2520 | 6,1 | FBSA 208/ DB | BSDU 240 DD | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 208/ DB屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：40，外徑：124，厚度66，SKFFBSA 208/ DB主要應用于 汽車減震器、等領域。如果您需要購買或者了解更多關于SKFFBSA 208/ DB的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 208/ DB近似型號
- SKF 6313-2Z/VA208 尺寸：65mm × 140 × 33 類型：深溝球軸承 備注：用于高溫的深溝球軸承
- SKF 5208 E-2RS1 尺寸：40mm × 80 × 30.2 類型：角接觸球軸承 備注：雙列
- SKF 1208 EKTN9 尺寸：40mm × 80 × 18 類型：自調心球軸承 備注：圓柱孔和圓錐孔
- SKF CR 14208 尺寸：36.525mm × 47.63 × 6.35 類型：徑向軸密封件 備注：徑向軸密封件
- SKF 7208 BECBP * 尺寸：40mm × 80 × 18 類型：角接觸球軸承 備注：?jiǎn)瘟?/dd>
- SKF 6208/HR11QN 尺寸：40mm × 80 × 18 類型：工程產品 備注：聚合物球軸承,單列球軸承
- SKF FBSA 208 A/ QFC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF 51208 尺寸：40mm × 68 × 19 類型：推力球軸承 備注：?jiǎn)蜗?/dd>
- SKF 6208 * 尺寸：40mm × 80 × 18 類型：深溝球軸承 備注：?jiǎn)瘟?/dd>
- SKF 4208 ATN9 尺寸：40mm × 80 × 23 類型：深溝球軸承 備注：雙列
- SKFFBSA 208/ DB相關型號
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
